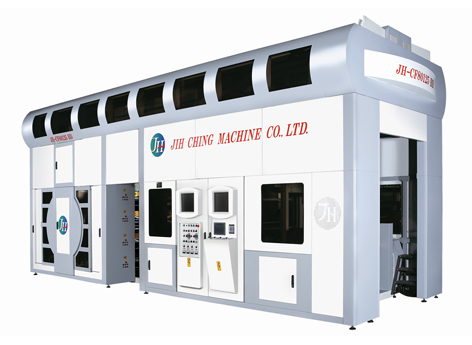

BD series - Doctor Blade type 8 COLORS FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)

SPECIFICATION LIST

MODEL	PRINTING WIDTH	FILM WIDTH	REPEAT LENGTH	MACHINE SPEED	PRINTING SPEED	M/C DIMENSION L x W x H

JH/CF-8060BD	600 mm	620 mm	330 - 890 mm	20~300 M / min	350 M / min	10992 x 2410 x 4470 mm
JH/CF-8080BD	800 mm	820 mm	330 - 890 mm	20~300 M / min	350 M / min	10992 x 2410 x 4470 mm
JH/CF-80100BD	1000 mm	1020 mm	330 - 890 mm	20~300 M / min	350 M / min	10992 x 2410 x 4470 mm
JH/CF-80125BD	1250 mm	1270 mm	330 - 890 mm	20~300 M / min	350 M / min	10992 x 2410 x 4470 mm
JH/CF-80150BD	1500 mm	1520 mm	330 - 890 mm	20~300 M / min	350 M / min	10992 x 2410 x 4470 mm
JH/CF-80160BD	1600 mm	1620 mm	330 - 890 mm	20~300 M / min	350 M / min	10992 x 2410 x 4470 mm

※The actual printing speed will depend on the printing conditions.

Dual wall type central impression drum, chrome plated with accurate grind, equipped with water or air cooling circulation system.
High precision doctor blade chamber system with ceramic anilox roller, suitable for printing superfine quality. Automatic ink circulation and quick washing system for optional equipment to short ink exchange and cleaning cycle.
Pre-register for forward and backward printing registration..
PLC memory module type (300 sets) servomotor auto position control system for impression adjustment.
Turret type non-stop auto changing system for optional equipment to save material change time.
Single chip advanced printing video inspection system (Eurpoe brand) with full color LCD monitor for register setting.
Line speed controlled by harmony synchronous driving system with high accurate auto tension control system.
Perfect drying loop design with exhaust system.
Electronic type auto edge position control (EPC + Eurpoe brand) on unwind unit.
Fast change-over sleeve type printing roller for optional equipment to quick printing job exchange.
