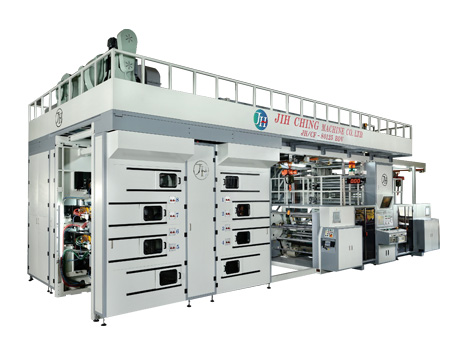

BDV series - Doctor Blade type 8 COLORS Gearless Type FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)

SPECIFICATION LIST

MODEL	PRINTING WIDTH	FILM WIDTH	REPEAT LENGTH	PRINTING SPEED	MACHINE SPEED	M/C DIMENSION L x W x H

JH/CF-8060BDV	580 mm	620 mm	380 - 900 mm	20~300 M / min	320 M / min	14115 x 6105 x 5233 mm
JH/CF-8080BDV	780 mm	820 mm	380 - 900 mm	20~300 M / min	320 M / min	14115 x 6355 x 5233 mm
JH/CF-80100BDV	980 mm	1020 mm	380 - 900 mm	20~300 M / min	320 M / min	14115 x 6605 x 5233 mm
JH/CF-80125BDV	1230 mm	1270 mm	380 - 900 mm	20~300 M / min	320 M / min	14115 x 6855 x 5233 mm
JH/CF-80150BDV	1480 mm	1520 mm	380 - 900 mm	20~300 M / min	320 M / min	14115 x 7105 x 5233 mm
JH/CF-80160BDV	1580 mm	1620 mm	380 - 900 mm	20~300 M / min	320 M / min	14115 x 7355 x 5233 mm

※The actual printing speed will depend on the printing conditions.
