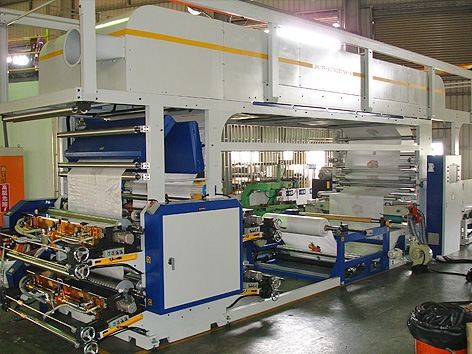

BDNW-A series - Woven Bag type 4 COLORS FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)


4 COLORS OFF-LINE SERIES


MODEL PRINTING WIDTH FILM WIDTH REPEAT
LENGTH
PRINTING
SPEED

M/C DIMENSION
L x W x H

JH/FF-4060BDNW-A 600 mm 620 mm 13” –48” 20~120 M / min 12160x2892x4288 mm
JH/FF-4080BDNW-A 800 mm 820 mm 13” –48” 20~120 M / min 12160x3092x4288 mm
JH/FF-40100BDNW-A 1000 mm 1020 mm 13” –48” 20~120 M / min 12160x3292x4288 mm
JH/FF-40125BDNW-A 1250 mm 1270 mm 13” –48” 20~120 M / min 12160x3842x4288 mm
JH/FF-40150BDNW-A 1500 mm 1520 mm 13” –48” 20~120 M / min 12160x3792x4288 mm
JH/FF-40160BDNW-A 1250 mm 1270 mm 13” –48” 20~120 M / min 12160x3892x4288 mm



  • FC-25 cast iron machine frame, vibration-free, at high speed operation.
  • Driven by timing belt, quiet and precise.
  • Precise doctor blade chamber system with ceramic anilox roller, suitable for superfine printing quality.
  • To use differential gear device (made in Japan) to adjust the registration with forward and backward adjustment by the electronic type push-button device.
  • Main motor by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) and line speed controlled by harmony synchronous driving system.
  • Automatic tension control (MITSUBISHI brand) + magnetic brake on unwind and rewind.
  • Electric control by using PLC (MITSUBISHI brand) with full color touch-screen type human machine interface (HMI).
