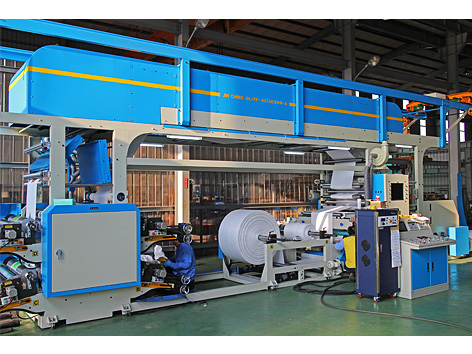

BNW-A series - Woven Bag type 4 COLORS FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)



4 COLORS OFF-LINE SERIES


MODEL PRINTING WIDTH FILM WIDTH REPEAT
LENGTH
PRINTING
SPEED

M/C DIMENSION
L x W x H

JH/FF-4060BNW-A 600 mm 620 mm 10” - 45” 20~120 M / min 12160 x 3075 x 4288 mm
JH/FF-4080BNW-A 800 mm 820 mm 10” - 45” 20~120 M / min 12160 x 3275 x 4288 mm
JH/FF-40100BNW-A 1000 mm 1020 mm 10” - 45” 20~120 M / min 12160 x 3475 x 4288 mm
JH/FF-40125BNW-A 1250 mm 1270 mm 10” - 45” 20~120 M / min 12160 x 3755 x 4288 mm
JH/FF-40150BNW-A 1500 mm 1520 mm 10” - 45” 20~120 M / min 12160 x 3975 x 4288 mm
JH/FF-40160BNW-A 1250 mm 1270 mm 10” - 45” 20~120 M / min 12160 x 4075 x 4288 mm




● FC-25 cast iron machine frame, vibration-free, at high speed operation.
● Driven by timing belt, quiet and precise.
● To use differential gear device (made in Japan) to adjust the registration with forward and backward adjustment.
● Main motor by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) and line speed controlled by
 harmony synchronous driving system.
● Automatic tension control (MITSUBISHI brand) + magnetic brake on unwind and rewind.

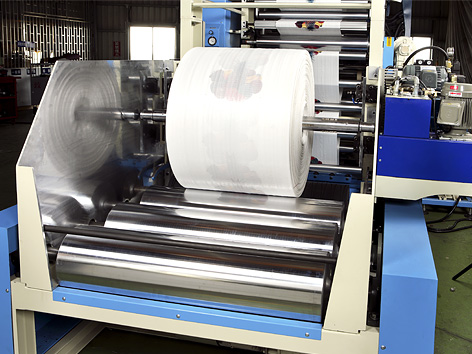

● Non-stop semi-auto web-changing device.
● Electric control by using PLC (MITSUBISHI brand) with full color touch-screen type human machine interface (HMI).
