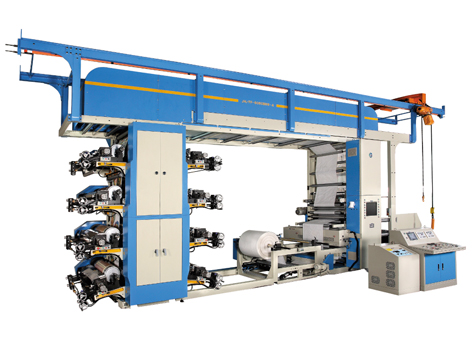

BNW-A series - Woven Bag type 8 COLORS FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)
8 COLORS OFF-LINE SERIES
MODEL
PRINTING WIDTH
FILM WIDTH
REPEAT
LENGTH
PRINTING
SPEED
M/C DIMENSION
L x W x H
JH/FF-8060BNW-A
600 mm
620 mm
13” - 48”
20~120 M / min
11860 x 2475 x 5150 mm
JH/FF-8080BNW-A
800 mm
820 mm
13” - 48”
20~120 M / min
11860 x 2675 x 5150 mm
JH/FF-80100BNW-A
1000 mm
1020 mm
13” - 48”
20~120 M / min
11860 x 2875 x 5150 mm
JH/FF-80125BNW-A
1250 mm
1270 mm
13” - 48”
20~120 M / min
11860 x 3125 x 5150 mm
JH/FF-80150BNW-A
1500 mm
1520 mm
13” - 48”
20~120 M / min
11860 x 3375 x 5150 mm
● FC-25 cast iron machine frame, vibration-free, at high speed operation.
● Driven by timing belt, quiet and precise.
● To use differential gear device (made in Japan) to adjust the registration with forward and backward adjustment by the
electronic type push-button device.
● Main motor by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) and line speed controlled by
harmony synchronous driving system.
● Automatic tension control (MITSUBISHI brand) + magnetic brake on unwind and rewind.
● Non-stop semi-auto web-changing device.
● Electric control by using PLC (MITSUBISHI brand) with full color touch-screen type human machine interface (HMI).
