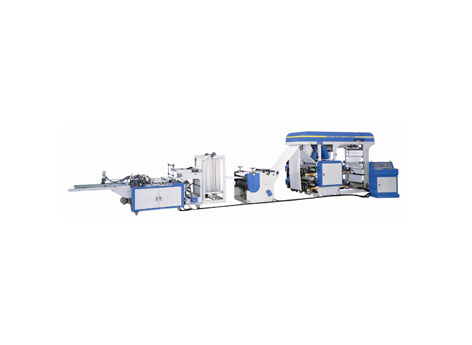

TINTING & PRINTING AND CUTTING MACHINE



4 COLORS SERIES


MODEL TINTING & PRINTING EQUIPMENT SPECIFICATION LIST equipment

M/C DIMENSION

L x W x H

PRINTING
WIDTH
FILMWIDTH REPEAT LENGTH PRINTING
SPEED
MAX. CUTTINGLENGTH CUTTING
SPEED
HY/FF-4060N+PB-28TVC 600 mm 620 mm 10” - 35” 20~80 M / min 600m

80M/min

120PCs/min

12150 x 2475 x 2600 mm
HY/FF-4080N+PB-34TVC 800 mm 820 mm 10” - 35” 20~80 M / min 600m

80M/min

120PCs/min

12150 x 2675 x 2600 mm




● FC-25 cast iron machine frame, vibration-free, at high speed operation.
● Driven by timing belt, quiet and precise.
● To use differential gear device (made in Japan) to adjust the registration with
  forward and backward adjustment.
● The perfect facility of drying system can be operated at high speed and be available
  for water-base ink.
● Sturdy embossing structure to control the depth of embossing pattern very easily.
● Cutting length controlled by servomotor, easy to set.
● 3 in 1 in-line control system, easy to operate.
