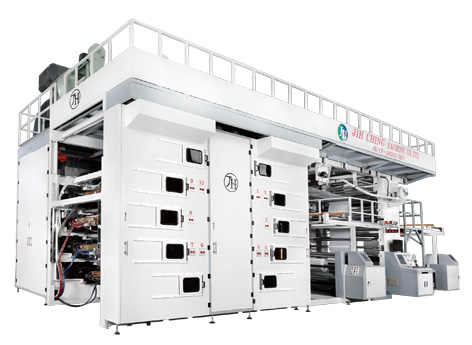

BDV series - Doctor Blade type 10 COLORS Gearless Type FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)


SPECIFICATION LIST


MODEL PRINTING WIDTH FILM WIDTH REPEAT
LENGTH

PRINTING
SPEED

MACHINE SPEED M/C DIMENSION
L x W x H
JH/CF-10060BDV 580 mm 620 mm 380 - 900 mm 20~300 M / min 320 M / min 14560 x 6150 x 6136 mm
JH/CF-10080BDV 780 mm 820 mm 380 - 900 mm 20~300 M / min 320 M / min 14560 x 6400 x 6136 mm
JH/CF-100100BDV 980 mm 1020 mm 380 - 900 mm 20~300 M / min 320 M / min 14560 x 6650 x 6136 mm
JH/CF-100125BDV 1230 mm 1270 mm 380 - 900 mm 20~300 M / min 320 M / min 14560 x 6900 x 6136 mm
JH/CF-100150BDV 1480 mm 1520 mm 380 - 900 mm 20~300 M / min 320 M / min 14560 x 7150 x 6136 mm
JH/CF-100160BDV 1580 mm 1620 mm 380 - 900 mm 20~300 M / min 320 M / min 14560 x 7400 x 6136 mm


The actual printing speed will depend on the printing conditions.
