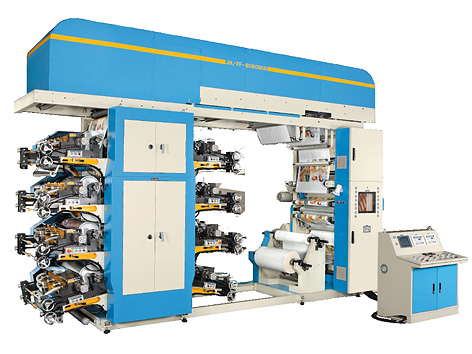

BDN series – Doctor Blade type 8 COLORS FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)



8 COLORS OFF-LINE SERIES


MODEL PRINTING WIDTH FILM WIDTH REPEAT
LENGTH		 PRINTING
SPEED

M/C DIMENSION
L x W x H
JH/FF-8060BDN 600 mm 620 mm 13” - 35” 20~150 M / min 5701x2475x3826 mm
JH/FF-8080BDN 800 mm 820 mm 13” - 35” 20~150 M / min 5701x2675x3826 mm
JH/FF-80100BDN 1000 mm 1020 mm 13” - 35” 20~150 M / min 5701x2875x3826 mm
JH/FF-80125BDN 1250 mm 1270 mm 13” - 35” 20~150 M / min 5701x3125x3826 mm
JH/FF-80150BDN 1500 mm 1520 mm 13” - 35” 20~150 M / min 5701x3375x3826 mm
JH/FF-80160BDN 1600 mm 1620 mm 13” - 35” 20~150 M / min 5701x3475x3826 mm



  • FC-25 cast iron machine frame, vibration-free, at high speed operation.
  • Driven by timing belt, quiet and precise.
  • Precise doctor blade chamber system with ceramic anilox roller, suitable for superfine printing quality.
  • Use differential gear device (made in Japan) to adjust the registration with forward and backward adjustment.
  • Main motor by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) and line speed controlled by harmony synchronous driving system.
  • In-feed and out-feed by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) + super-low friction air cylinder + position examine sensor + precise pressure regulating valve, which can control the tension of film accurately.
  • Automatic tension control (MITSUBISHI brand) + magnetic powder brake on unwind and rewind.
  • Electronic type automatic edge position control (EPC) on unwind.
  • Electric control by using PLC (MITSUBISHI brand) with full color touch-screen type human machine interface (HMI).
  • Single-chip advanced print inspection system (SONY brand) with full color LCD monitor.
  • All rotating rollers are treated with dynamic balance adjustment.
